ZMYM3 Antibody - ChIP-seq Grade

Catalog Number
50 μg
  Bulk order
Other format

Monoclonal antibody raised in mouse against human ZMYM3 (Zinc Finger, MYM-Type 3), using the full length recombinant protein.

Concentration2.07 μg/μl
Species reactivityHuman
PurityProtein A purified monoclonal antibody in PBS containing 0.05% azide.
Storage ConditionsStore at -20°C; for long storage, store at -80°C. Avoid multiple freeze-thaw cycles.
PrecautionsThis product is for research use only. Not for use in diagnostic or therapeutic procedures.
Applications Suggested dilution References
ChIP * 1-2 μg/ChIP Fig 1, 2
Protein array 1:100,000 Fig 3
IF 1:1,000 Fig 4

* Please note that the optimal antibody amount per IP should be determined by the end-user. We recommend testing 1-10 μg per IP.

  • Validation Data


    Figure 1. ChIP results obtained with the Diagenode monoclonal antibody directed against ZMYM3
    ChIP was performed using HepG2 cells, the Diagenode monoclonal antibody against ZMYM3 (Cat. No. C15200016) and optimized PCR primer sets for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010055), using sheared chromatin from 4 million cells. A titration of the antibody consisting of 1, 2, 5 and 10 μg per ChIP experiment was analysed. IgG (2 μg/IP) was used as negative IP control. Quantitative PCR was performed with primers near the CAMK2N1 and SCML1 promoters, used as positive controls, and for the MYOD1 gene and the Sat2 satellite repeat, used as negative controls. Figure 1 shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

    ChIP-seq figure A

    ChIP-seq figure B

    ChIP-seq figure C

    ChIP-seq figure D

    Figure 2. ChIP-seq results obtained with the Diagenode monoclonal antibody directed against ZMYM3
    ChIP was performed with 1 μg of the Diagenode antibody against ZMYM3 (Cat. No. C15200016) on sheared chromatin from 4 million HepG2 cells as described above. The IP’d DNA was subsequently analysed on an Illumina HiSeq 2000. Library preparation, cluster generation and sequencing were performed according to the manufacturer’s instructions. The 50 bp tags were aligned to the human genome using the BWA algorithm. Figure 2 shows the peak distribution along the complete sequence and a 2 Mb region of chromosome 3 (figure 2A and B) and in two regions surrounding the SCML1 and CAMK2N1 positive control genes (figure 2C and D). The position of the amplicon used for ChIP-qPCR is indicated by an arrow.

    Protein array analysis

    Figure 3. Protein array analysis with the Diagenode antibody directed against ZMYM3
    The specificity of the Diagenode antibody against ZMYM3 (Cat. No. C15200016) was demonstrated using the HuProt human protein microarray (CDI Laboratories), a protein array containing more than 19,000 human proteins. The antibody was used at a dilution of 1:100,000. Figure 4 shows the Z-score of the signal intensity (mean value of the duplicate spots on the array). The names of the proteins with 3 highest Z-scores are indicated at the bottom. This figure clearly shows the high specificity of the antibody for ZMYM3.

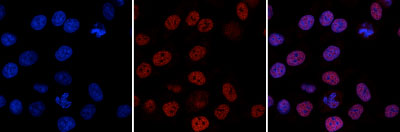

    Figure 4. Immunofluorescence using the Diagenode monoclonal antibody directed against ZMYM3
    HeLa cells were stained with the Diagenode monoclonal antibody against ZMYM3 (cat. No. C15200016) and with DAPI. Cells were fixed with 4% formaldehyde for 10’ and blocked with PBS/TX-100 containing 1% BSA. The cells were immunofluorescently labeled with the ZMYM3 antibody (middle) diluted 1:1.000 in blocking solution followed by an anti-mouse antibody conjugated to Alexa594. The left panel shows staining of the nuclei with DAPI. A merge of the two stainings is shown on the right.

  •  Applications
  •  Documents
    ZMYM3 monoclonal antibody C15200016 DATASHEET
    Datasheet of the ZMYM3 monoclonal antibody
    Epigenetic Antibodies Brochure BROCHURE
    More than in any other immuoprecipitation assays, quality antibodies are critical tools in many e...
    Antibodies you can trust POSTER
    Epigenetic research tools have evolved over time from endpoint PCR to qPCR to the analyses of lar...
  •  Publications

    How to properly cite this product in your work

    Diagenode strongly recommends using this: ZMYM3 Antibody - ChIP-seq Grade (Diagenode Cat# C15200016 Lot# 001). Click here to copy to clipboard.

    Using our products in your publication? Let us know!
